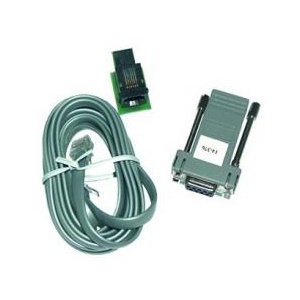

Software; Product Approvals. PC-Link(5SP) - Installation Manual - Direct-Connect cable (DLS). DSC (Digital Security Controls) is a world.
Purchase Optional Pre-programming for your system HERENOTE: DSC does not include the 16.5V 40VA Power Transformer needed to power this system. If you do not already have the 16.5V 40VA Power Transformer then you will need to check the option to add it
The DSC Power 1864 alarm system is the third of three new Power Series systems recently released by DSC. It replaces the former Power 864 model. It features 8 hardwired zone inputs out of the box and can be expanded up to a total of 64 hardwired zones and up to 64 wireless zones. Supports up to 8 keypads with 95 user codes; one master and one supervisor code, and has eight partitions.
Features
- 8 on-board zones
- Expandable to 64 hardwired zones
- Expandable to 64 wireless zones
- 4 PGM outputs: expandable to 14 (PC5204, PC5208)
- Template programming
- Connect up to 8 supervised keypads with keypad zones
- 8 partitions
- 500-event buffer
- 95 user codes
- Approval Listings: European CE Directives (EMC, R&TTE, LVD), INCERT (Belgium), NCP (Holland), NFA2P Type 2 (France), IMQ (Italy) Livello 2, SBSC (Sweden) Larmklass 2, EN50131-1 Grade 2, Class II Environmental, ICASA (South Africa), FCC/IC, UL/ULC
Extended Information
There are certain data that I refer to often and I like to include this data in the front.
Dsc Pc Link Software
Alarm – enable and disable
Ensure all doors and windows are closed. On the control panel, enter the master code:
[master code] = [your master code]
Disable phone line
My house has a telephone land line, but I do not have land line service. Around 11pm every night the system beeps. If the system loses power, then this has to be re-entered. To disable this beeping, on the keypad enter the following:
- Disable the phone line: *8 5555 015 7 ##
- Turn off phone line test transmissions *8 5555 371 9999 ##
- Turn off the phone dialer: *8 5555 380 1 ##
Envisalink Alert Server
Login to Envisaiink
Get Envisalerts Server: 184.106.215.218
Open U-verse router: 192.168.1.254
Go to Settings, Firewall
Envisalink login
Open Browser
Enter Envisalink IP address: http://192.168.1.92/3
[envisalink username] = user
[envislink password] = [enter your password]
Envisalink IP Address
[Envisalink IP address] = 192.168.1.92
Free Dsc Pc Link Software
Eyes-on Username and Password
[eyes-on username] = [your envisalink username]
[eyes-on password] = [your envisalink password]
Installer’s code
[Installer’s Code] = [Enter your Installer's Code]
5555 is the default code. You can ask your installer for the code, or you can do a factory reset, which puts it back to 5555. I do not recommend doing a factory reset because there is a significant possibility of damaging the system.
Master Code
[MasterCode] = [enter your master code]
Raspberry Pi IP
[Raspberry Pi IP] = [enter your Raspberry Pi IP address, something like 192.168.1.57]
Raspberry Pi login from Mac Book
On Mac Book, open terminal
ssh pi@[Raspberry Pi IP]
[Password]
Raspberry Pi password
Password = [your Raspberry Pi password]
Router
Router IP Address =[enter your router's IP address]
Set DSC Time and Date
*611301hhmmMMDDYY#
hh are in military time, for pm add 12. So, 4pm is 16
Zone Programming
Zone Alarm Type
01 - Alarm after providing a delay (default 60 seconds) in Stay or Away mode
03 – Alarm instantly if violated when in Stay or Away mode
05 – Interior motion sensor. Alarm instantly if violated only when the Away mode (bypasses when in Stay)
On keypad, enter:
*8 [Installer Code] 001 01 03 05 05 87 # #
Explanation of above code sequence:
- *8 [Installer's Code]
- 001 – This gets you into zone programming for zones
- 01 03 05 05 87 – This is my sequence of zone alarm types, in zone order from 1 to 5.
- All zones must be properly set.
- # # – This saves what you’ve done and gets you back out of programming mode.
